Route an App LLM proxy to several providers

An App LLM proxy can front more than one LLM provider. Applications keep sending requests in one format to one endpoint, and each request reaches whichever provider it selects.

This is useful when you want to compare providers on identical requests, fail over between vendors without touching application code, or keep several vendor credentials in the workspace instead of distributing them.

A proxy with one provider needs none of this. The extra controls appear only once you attach a second one.

Prerequisites

How a multi-provider proxy fits together

Three things decide what happens to a request:

Concept What it does
Inbound interface The format the proxy accepts from client applications.
Provider An LLM provider attached to the proxy. One is the primary.
Transformer policy Translates between the inbound interface and a provider's own format.

A provider needs a transformer when its own format differs from the inbound interface. A provider that already speaks the inbound format needs nothing, and the workspace shows it as Not required.

The gateway performs the selection, translation and authentication at request time. For how that works - the routing policy, the header it reads, and the order things execute in - see Multi-provider routing in the AI Gateway documentation.

Create a proxy with several providers

  1. Navigate to LLM > App LLM Proxies in the left navigation menu.

  2. Click Create App LLM Proxy.

  3. Fill in the proxy details - Name, Version, and optionally Description and Context - as you would for any proxy. The context is derived from the name as you type. See Configure an App LLM proxy for what each field does.

  4. Under Provider Configuration, select the first provider from the LLM Provider dropdown. This becomes the proxy's primary provider by default but it can be switched later.

  5. Click + Add Additional LLM Provider. The form turns into a provider table, and a New provider panel opens below it with the proxy's inbound interface shown in its top-right corner.

  6. Choose the provider from the panel's LLM Provider dropdown. Providers already attached are not listed, so the same one cannot be added twice.

    If a transformer in the catalogue matches the conversion this provider needs, the workspace attaches it automatically and shows it under Transformer. If none matches, the panel says No transformer configured and offers Configure transformer so you can pick one yourself.

  7. Give the provider a credential - enter one under Enter API Key Manually, or click Generate API Key and name the key. A generated key is attached when the proxy is created.

  8. Click Add provider to put it in the table, then repeat from step 5 for any further providers.

    The table shows each provider's Provider ID beneath its name, its Transformer policy, which one is Primary, and row Actions. Use the Primary toggle to move the primary marker to a different provider.

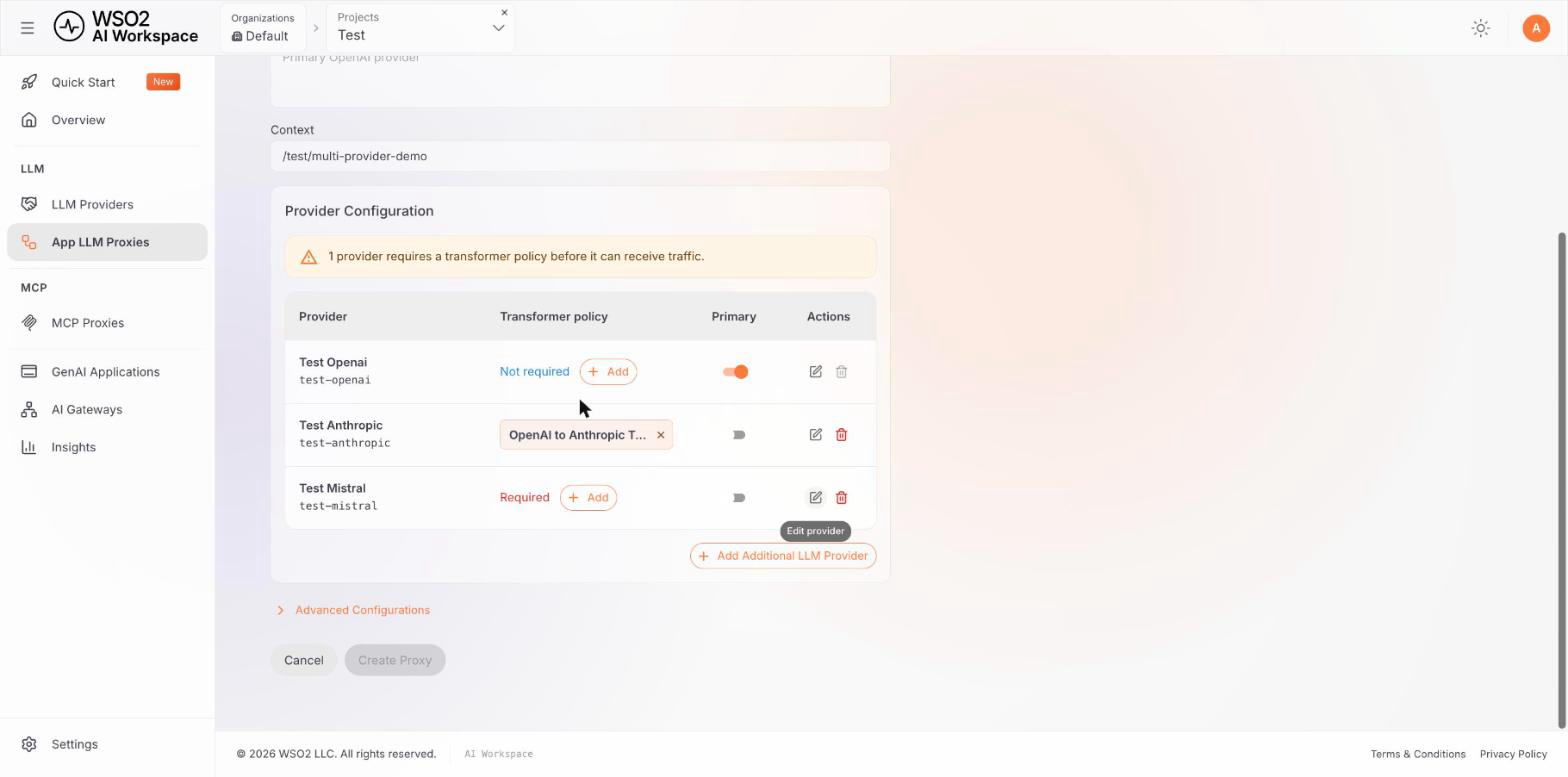

    Create App LLM Proxy page with three attached providers, the Transformer policy column showing Not required, an auto-attached transformer, and Required

  9. Click Create Proxy.

Note

Create Proxy stays disabled until every provider that requires one has a credential. Hovering the disabled button says which condition is unmet. A provider still showing Required in the Transformer policy column does not block creation. The proxy is created. A gateway at 2026.09.24 or later still routes to that provider, but the request arrives untranslated in the proxy's inbound format. The provider is likely to reject it until you attach a transformer. Earlier gateways reach a provider that carries no transformer only by accident.

Choose the inbound interface

The inbound interface is the request format the proxy accepts from client applications. It decides what each provider needs translating to.

By default you do not choose it:

  • With one provider, the interface is that provider's own format, so nothing needs translating.
  • With several providers, it defaults to OpenAI, which has the widest transformer coverage and so leaves the most providers matching automatically.

To set it yourself while creating the proxy, expand Advanced Configurations and pick from Inbound Interface.

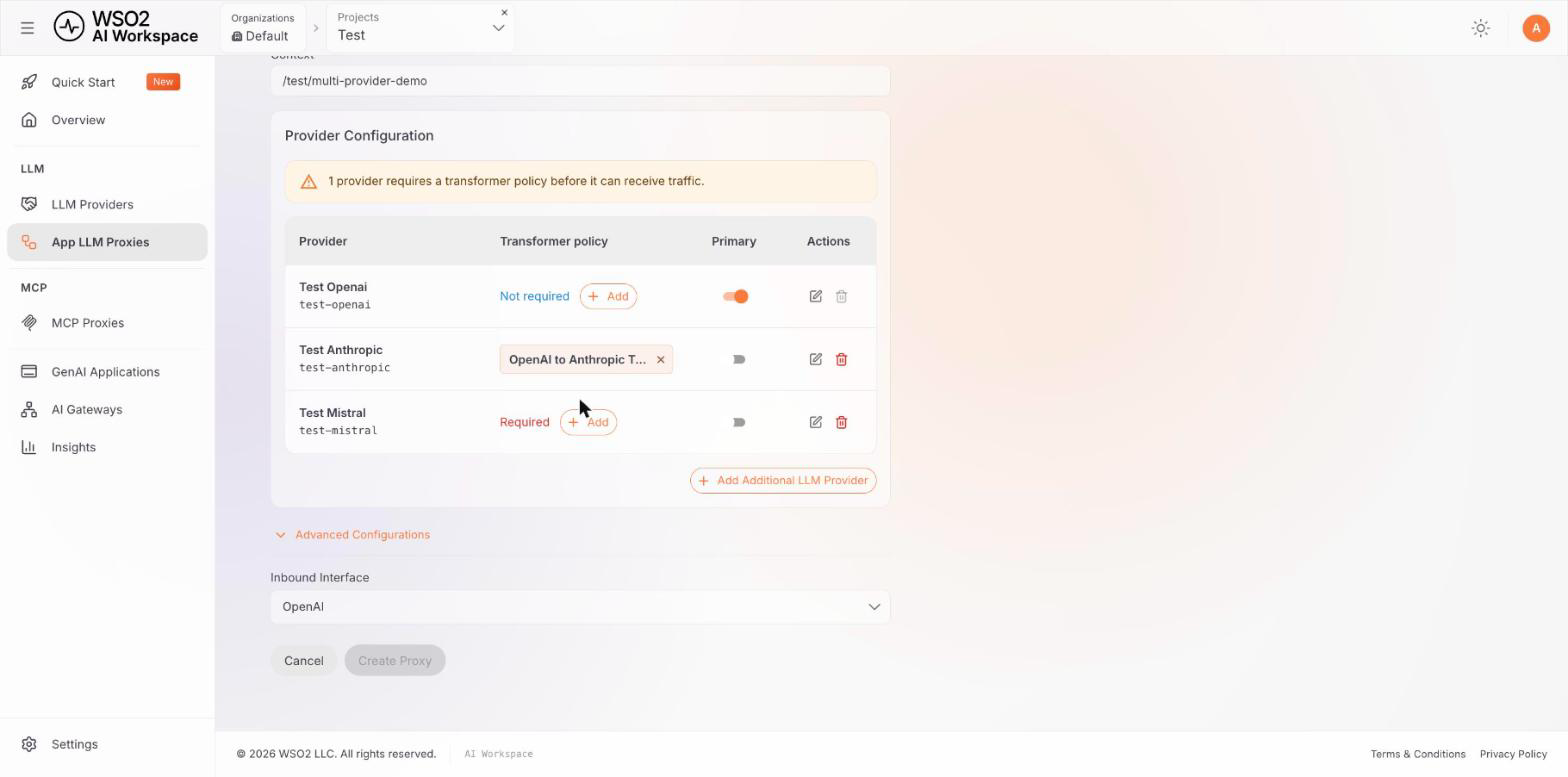

Create App LLM Proxy page with Advanced Configurations expanded, showing the Inbound Interface dropdown set to OpenAI below the provider table

After creation you can change it in two places - the Providers tab, next to the Inbound interface label, or the Definition tab, which also shows the OpenAPI definition it implies.

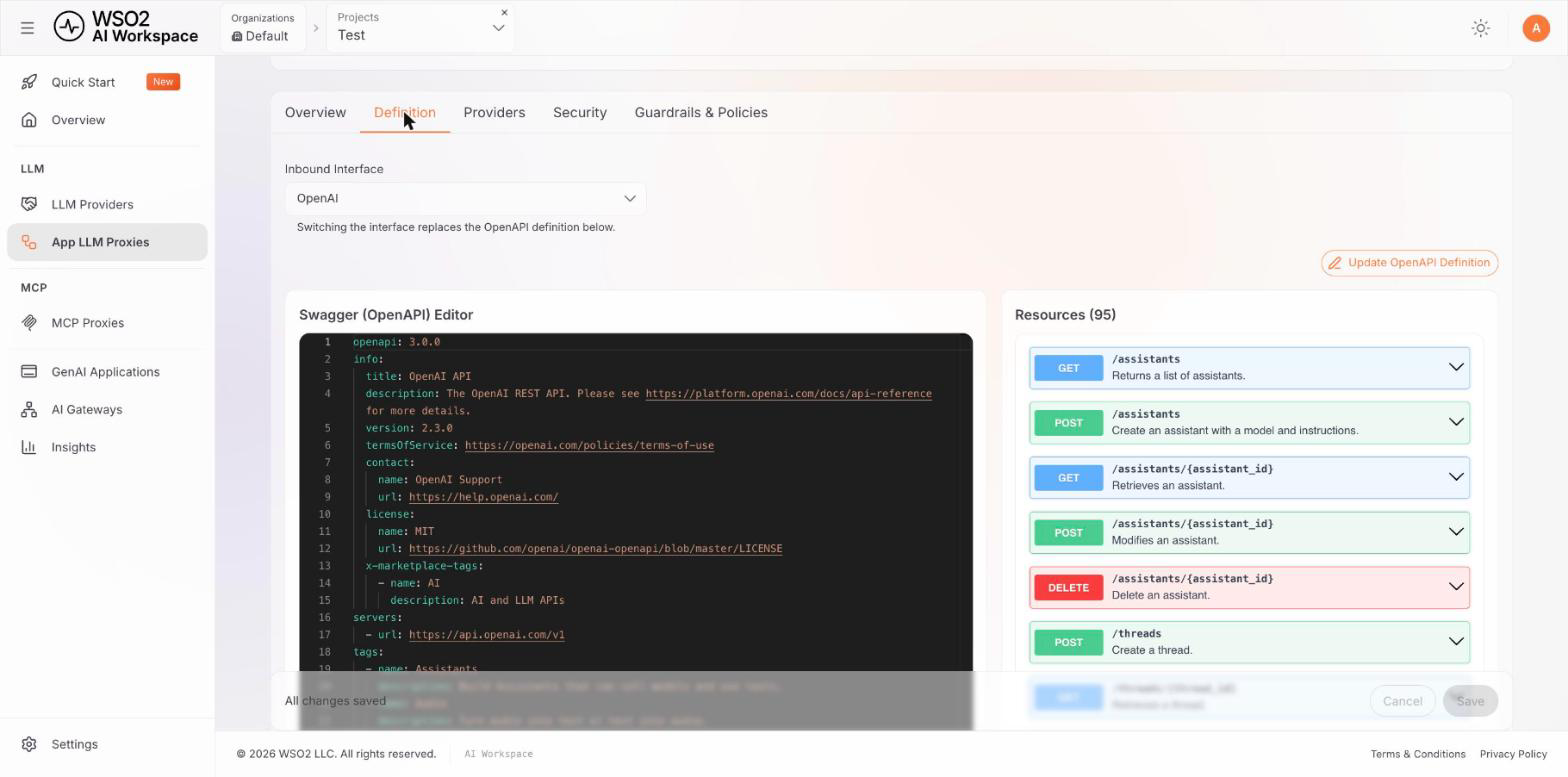

Definition tab showing the Inbound Interface dropdown above the Swagger editor, with the note that switching the interface replaces the OpenAPI definition

Warning

Switching the inbound interface replaces the proxy's OpenAPI definition, and changes what every attached provider needs. A provider that needed no transformer may now need one, and the proxy reports it as Required until you attach it.

Manage providers after creation

Open the proxy and go to the Providers tab. It shows the inbound interface, the provider count, and the same table you used while creating the proxy.

Providers tab of a created proxy, listing three providers with their IDs, transformer policies and primary toggle

From here you can:

  • Add Additional LLM Provider to attach another.
  • Edit provider to change its credential or transformer.
  • Remove provider to detach one. The last remaining provider cannot be removed - a proxy always has at least one.
  • Move the Primary marker with the toggle.

Changes are held on the page until you save, so you can adjust several providers and apply them together. The bar at the bottom of the page reports whether there is anything unsaved.

Select a provider at request time

Each provider row shows a Provider ID beneath the provider's name - test-openai in the screenshots above. That is the value an application sends to select that provider, in the header the gateway's routing policy is configured to read.

A request that names no provider, or names one the proxy does not have, goes to whichever provider the routing policy names as its default. When the policy sets no default, it goes to the primary.

For the routing policy itself - which header it reads, how to map header values to providers, and how to set a different default - see Multi-provider routing.

Attach a transformer policy

Click Add in a provider's Transformer policy column to open the Transformers panel. It is pre-filtered to the LLM Transformation category with an empty search box, and lists both the transformers shipped with the product and any custom policies deployed on your gateway.

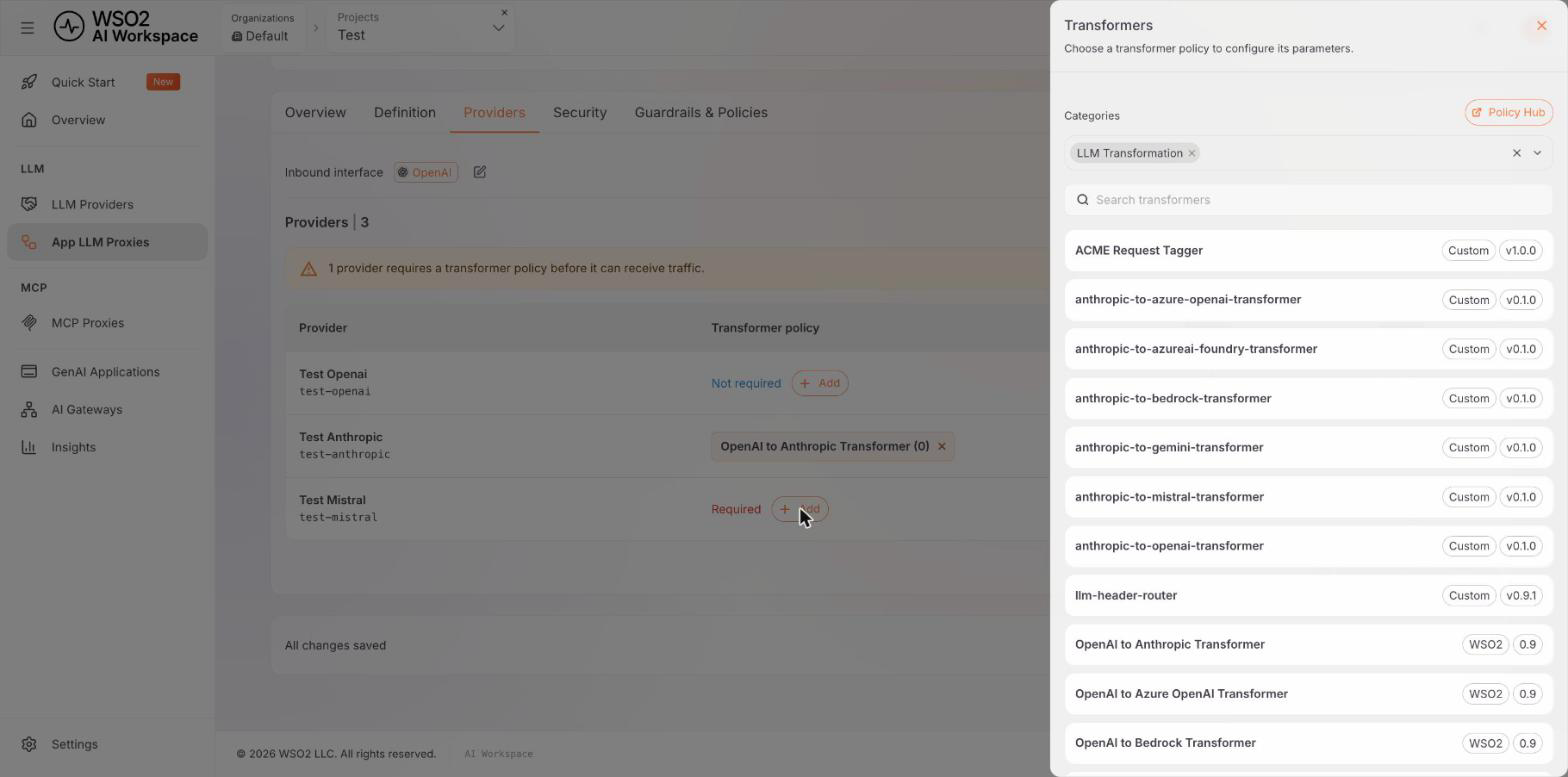

Transformers panel filtered to the LLM Transformation category, listing custom and WSO2 transformer policies with their versions

Each entry shows its source - WSO2 for a catalogue policy, Custom for one built for your gateway - and its version. Clearing the category filter widens the list to every policy. Selecting a transformer opens its parameters for configuration.

A transformer is recorded on the proxy only when it is attached. On a gateway at 2026.09.24 or later, a provider left showing Required still receives requests, but they arrive untranslated in the proxy's inbound format. Earlier gateways reach it only by accident.

Note

Automatic matching looks for a policy named for the exact conversion - for example openai-to-anthropic-transformer. A provider whose template handle does not match any policy name is reported as unmatched even when a suitable transformer exists in the catalogue under a slightly different name. Pick it manually in that case.

What needs a newer gateway

A gateway at 1.2.x serves multi-provider proxies, but reads only the older provider plus additionalProviders configuration. The capabilities added since then need a newer gateway:

Capability Minimum gateway
Several providers, each with its own credential 1.2.0
An inbound interface that differs from the primary provider's own format 2026.09.24
A transformer on the primary provider 2026.09.24
Routing to a provider that carries no transformer 2026.09.24

A proxy that declares the canonical list, a primary alias or transformer, or its own inbound interface fails to deploy to an older gateway. It does not deploy and then behave unexpectedly. Routing to a provider with no transformer is the exception. The proxy deploys, but an older gateway reaches that provider only by accident.
